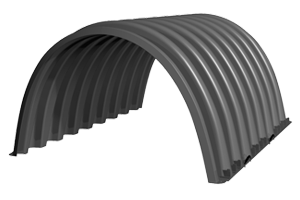

HydroStor® Chamber
High performance stormwater storage chambers
Product Type: Chamber
Prinsco offers four sizes of high-performance HydroStor® stormwater chambers designed for site-specific applications such as parking lots, roadways, and commercial developments. HydroStor chambers provide an environmentally sustainable underground water management system that optimizes groundwater recharge and saves valuable land resources. Our four storm chamber models are designed to fit almost any type of performance specifications, project footprint, and construction budget.
Prinsco’s chamber systems can be easily modeled with the HydroCAD Stormwater Modeling System and the Civil 3D Auto CAD Module. Both tools simplify the process of designing a system meeting specific storage and footprint requirements.
Contact your Prinsco sales rep to learn more about HydroStor® Chamber.
Related
Performance
- High performance polypropylene material
- Meets or exceeds ASTM F2418 product standard & ASTM F2787 design standard
- Meets AASHTO H20 live load & HL93 design load requirements
- Advanced injection molding technology for maximum structural performance
System Design
- Maximum land utilization & minimal environmental impact
- Smaller footprint with lower installed cost than similar chambers
- Features integral connectors for simplified assembly
- Design tool available at Prinsco.com/HydroStor-Resources
- Available as part of a complete solution with end caps, pipe manifolds & pretreatment options ons
Handling
- Integrated Handles for safe on-site handling
- Sturdy and lightweight for safe transport and placement by 2 people
- Specially designed pallet for trouble free handling
- Maximum stacking density to reduce on-site staging footprint

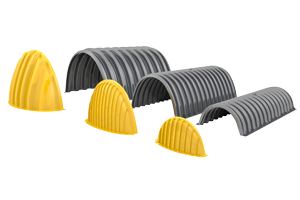

Available Sizes
HS290 |
HS180 |
HS75 |
HS31 |
|
|---|---|---|---|---|
| Installed Storage Capacity* | 164.5 ft3/chamber | 176 ft3/chamber | 75 ft3/chamber | 31.2 ft3/chamber |
| Height | 59.5″ | 45.5″ | 29.7″ | 16″ |
| Width | 100.5″ | 77.8″ | 51″ | 34″ |
| Unit Length | 51.8″ | 88.7″ | 87.1″ | 87.3″ |
| Installed Length | 48.3″ | 85.3″ | 84.9″ | 85.5″ |
| Weight | 122 lbs | 122 lbs | 69 lbs | 34 lbs |
| Chambers/Pallet | 10 | 19 | 33 | 90 |
| Material | Polypropylene | Polypropylene | Polypropylene | Polypropylene |
| Mfg. Process | Injection Molding | Injection Molding | Injection Molding | Injection Molding |
| Special Features | Integrated Handles | Integrated Handles | Integrated Handles | Integrated Connectors |
| ASTM Standards | Meets or Exceeds | Meets or Exceeds | Meets or Exceeds | Meets or Exceeds |
* Assuming 40% void volume of backfill with 9″ bedding & 12″ cover for HS290 & HS180 and 6″ bedding & 6″ cover for HS75 & HS31
Installation Specifications
HS290 |
HS180 |
HS75 & HS31 |
|
|---|---|---|---|
| Backfill Above Chamber | 12″ min. | 12″ min. | 6″ min. |
| Bedding | 9″ min. | 9″ min. | 6″ min. |
| Chamber Spacing | 8.5” | 5″ | 6″ |
| Backfill at Edge of System | 12″ | 12″ | 12″ |
| Minimum Cover | 24” | 18″ | 18″ |
| Maximum burial Depth | 8′ | 8′ | 8′ |
- Meets or exceeds ASTM F2418 product standard
- Meets or exceeds ASTM F2787 design standard
- Meets AASHTO H20 live load requirement
- Meets AASHTO HL93 design load requirement
